In modern metalworking and CNC machining, Tangential Chaser Die systems have become one of the most efficient and reliable solutions for external thread cutting. Also known as Tangential Thread Chasers, these tools are widely used on CNC lathes, automatic lathes, and dedicated threading machines, especially in high-volume production environments.
Compared with traditional round dies, tangential chaser dies offer superior cutting stability, longer tool life, and consistently clean thread profiles. This article explains what tangential chaser dies are, how they work, their advantages, materials, applications, and why they are increasingly searched and specified by professional buyers worldwide.
What Is a Tangential Chaser Die?

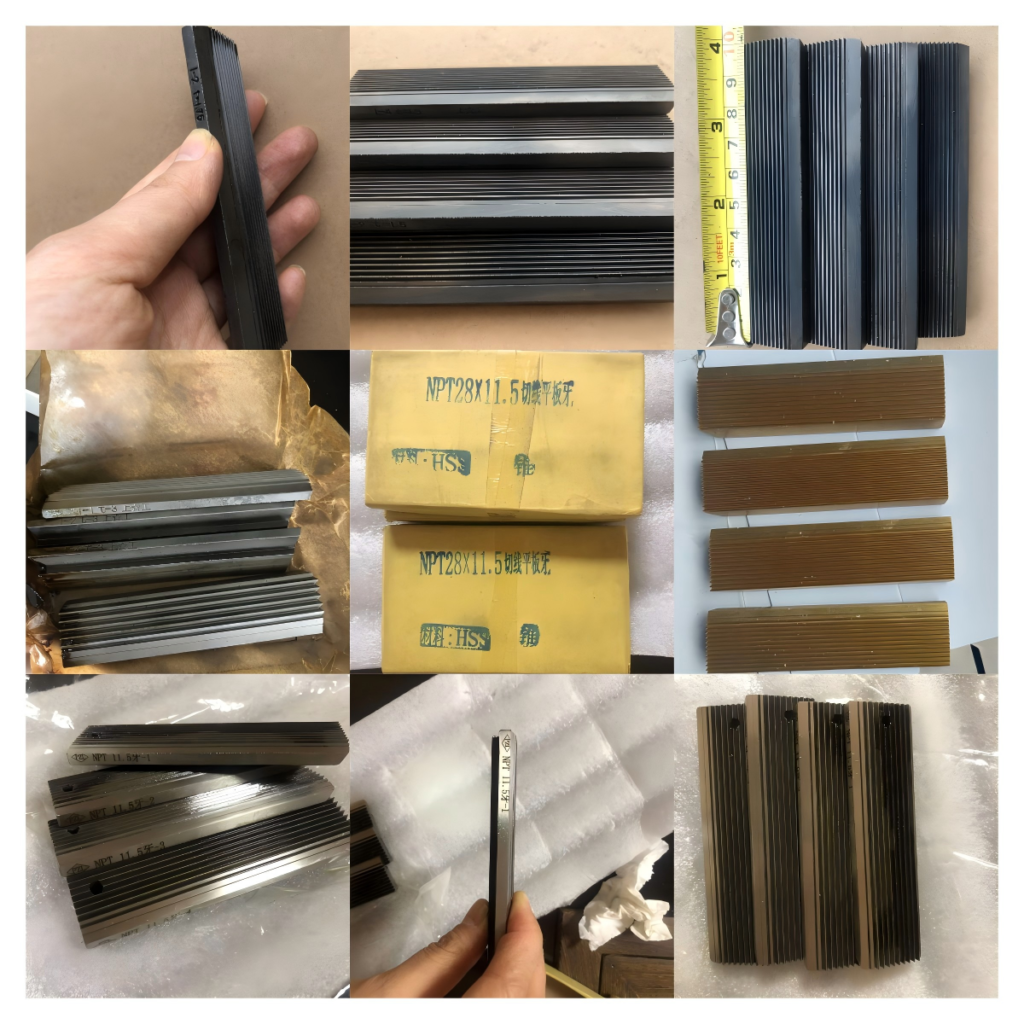

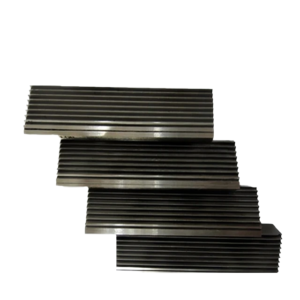

A Tangential Chaser Die is a threading system composed of individual cutting elements—commonly supplied as a Tangential Chaser Die Set of 4 pcs. These chasers are mounted tangentially to the workpiece, rather than surrounding it completely like a conventional round die.
This tangential arrangement allows:
Balanced cutting forces
Reduced vibration during threading
Higher dimensional accuracy
Improved surface finish of external threads
Because of this design, tangential thread chasers are especially suitable for continuous and mass production, where repeatability and efficiency are critical.
Tangential Chaser Die vs. Round Die
One of the most common search questions is the difference between tangential chaser dies and traditional round dies.
Traditional round dies:
Cut the thread in a single enclosed tool
Higher cutting resistance
Faster wear in mass production
Tangential chaser dies:
Use multiple chasers (usually 4 pcs)
Distribute cutting load evenly
Maintain consistent thread quality over long runs
For CNC lathe threading and industrial applications, tangential chaser dies are generally the preferred choice.
Materials: HSS and HSS-Co Tangential Thread Chasers
High-quality Tangential Chaser Dies are manufactured from premium tool steels, mainly:
HSS (High Speed Steel)
Excellent wear resistance
Good toughness
Suitable for carbon steel and alloy steel
HSS-Co (Cobalt High Speed Steel)
Higher heat resistance
Longer tool life
Ideal for stainless steel and difficult-to-cut materials
When buyers search for HSS Tangential Chaser Die or HSS-Co Tangential Thread Chasers, they are usually looking for tools capable of stable performance under demanding production conditions.
Available Thread Standards
Tangential chaser dies are available in a wide range of thread forms to meet global standards. Commonly searched and supplied options include:
Metric threads
Inch / UN threads
BSP and BSPT threads
NPT threads
UNF / UNC threads
Custom and special thread profiles
This flexibility makes Tangential Chaser Die Sets suitable for international markets and export-oriented manufacturing.
Applications of Tangential Thread Chasers
Tangential chaser dies are widely used across multiple industries, including:
Automotive components
Pipe fittings and connectors
Fasteners and threaded rods
Hydraulic and pneumatic parts
General CNC metalworking
In these applications, external thread cutting accuracy directly affects assembly quality, sealing performance, and product reliability.
