Precision Threading Solutions: The Ultimate Guide to HSS Inch Tangential Chaser Dies
In the world of high-volume industrial threading, efficiency and precision are not just goals—they are necessities. Whether you are manufacturing bolts, pipes, or specialized fasteners, the tools you choose determine your bottom line. Among the most reliable tools in the industry is the HSS Tangential Chaser Die.
In this article, we will explore why Inch Tangential Chasers made from High-Speed Steel (HSS) are the preferred choice for professional machinists and how our latest product line (Item series 26630) sets a new standard for durability.
What is a Tangential Chaser Die?
Unlike radial dies, tangential chaser dies are designed to contact the workpiece at a tangent. This specific geometry allows the cutting force to be distributed more evenly. These dies are typically used in stationary or rotary die heads (such as Landis-style heads) and are renowned for their ability to produce high-quality threads over long production runs.
Why High-Speed Steel (HSS)?
Material choice is critical. Our chasers are manufactured from premium High-Speed Steel (HSS). This provides several key advantages:
- Heat Resistance: Maintains hardness even at high cutting temperatures.
- Toughness: Reduces the risk of chipping or breaking under heavy loads.
- Regrindability: One of the biggest ROI factors—HSS tangential chasers can be reground multiple times, significantly extending their service life compared to throw-away inserts.

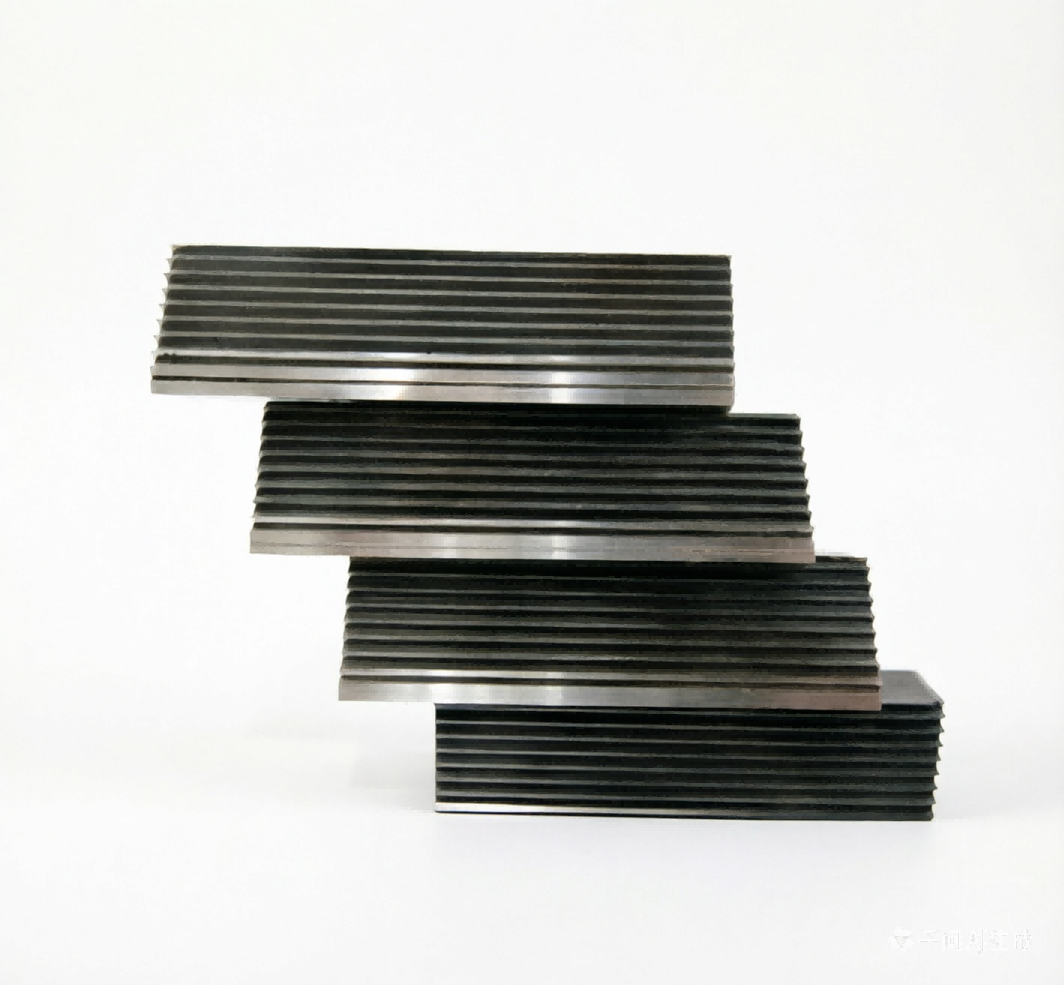

Technical Specifications: The 26630 Series
Our current featured product line focuses on the 1-inch series, designed for versatility across various TPI (Threads Per Inch) requirements. All units in this series follow a standardized dimension for seamless integration into your existing setups:
- Length (L): 100 mm
- Width (B): 25 mm
- Height (H): 10 mm
Available Sizes and TPI Options
We offer a comprehensive range of pitches to meet ANSI and unified thread standards:
| Item Number | Specification (Size – TPI) | Dimensions (L x B x H) |
|---|---|---|
| 26630-010 | 1″ – 20 TPI | 100 x 25 x 10 mm |
| 26630-015 | 1″ – 11 TPI | 100 x 25 x 10 mm |
| 26630-020 | 1″ – 6 TPI | 100 x 25 x 10 mm |
(Full range available from 6 TPI to 20 TPI, including 18, 16, 14, 12, 10, 9, 8, and 7 TPI options.)
Key Benefits of Using Inch Tangential Chasers
1. Superior Surface Finish
Because the cutting action is tangential, the “shaving” effect is minimized, resulting in a smoother thread surface. This is vital for industries like oil & gas or aerospace, where thread friction and integrity are paramount.
2. Extreme Precision
Our HSS dies are precision-ground to ensure that the lead angle and tooth profile are perfect. This ensures that every 1″ thread you cut—whether it’s a fine 20-pitch or a coarse 6-pitch—meets strict tolerance levels.
3. Cost-Efficiency through Longevity
By using HSS, we ensure that the tool stays sharper for longer. When the edge eventually dulls, the tangential design allows for simple sharpening on the throat/chamfer area, meaning you get thousands of extra threads out of a single set.
Applications in Modern Industry
The Inch Tangential Chaser Die is a workhorse in several sectors:
- Construction: Threading rebar and structural bolts.
- Automotive: Manufacturing specialized heavy-duty studs.
- Plumbing & Piping: Creating reliable NPT or BSPT threads (depending on the grind).
- Fastener Manufacturing: High-speed production of standard inch-sized screws and bolts.
Maintenance Tips for HSS Chasers
To maximize your investment, always ensure:
- Correct Alignment: Ensure the die head is perfectly centered.
- Copious Coolant: Use high-quality cutting oil to reduce friction and flush away chips.
- Timely Sharpening: Don’t wait until the thread quality drops; a light regrind at regular intervals preserves the tool’s core geometry.
Conclusion
Choosing the right tangential chaser die is about balancing initial cost with long-term performance. Our HSS 26630 series offers the toughness of high-speed steel paired with the precision of ground threading technology. With sizes ranging from 1″-6TPI to 1″-20TPI, we have the exact tool for your next project.
Ready to upgrade your threading operation? [Contact our sales team today] for a quote on our HSS Tangential Chaser sets.
